SPN 5826 Fault Code Explained and How to Fix It

SPN 5826 indicates a high-severity emission-related fault, often tied to issues in the DPF (Diesel Particulate Filter) or DEF system (Diesel Exhaust Fluid), which has triggered a power derate (limp mode). When this code is active, the ECM detects an issue that prevents the system from properly treating exhaust gases, leading to a reduction in engine power to protect the vehicle.

‍

What does SPN 5826 mean?

SPN 5826 refers to an Emission Control System Operator Inducement Fault, indicating that the system has detected an issue in the aftertreatment system (including DPF, SCR, or DEF systems). This leads to a power derate to force repairs. The fault often signals level 2 or level 3 inducement, meaning repairs are urgently required.

• FMI 15/16 usually accompanies this fault, showing that the system is over capacity or has failed to meet emission standards.

‍

What are the common causes of SPN 5826?

• DPF Issues: Accumulated ash or soot inside the DPF can cause a blockage, triggering SPN 5826.
• DEF System Failures: Problems with the DEF temperature sensor or DEF pump can result in improper fluid injection.
• Fuel System Problems: Clogged or dirty fuel filters can lead to the improper combustion of fuel, affecting emission controls.
• Faulty Wiring or Connections: Corroded or damaged wiring and connectors can disrupt communication with the ECM.


• Incorrect Software Calibration: Miscommunication between control modules can also cause a failure to meet emission standards, resulting in this fault.

‍

What are the symptoms when SPN 5826 is active?

• Check Engine Light (CEL) illuminated
• Engine power derate (limp mode)
• Frequent regeneration requests
• Reduced fuel economy
• Increased maintenance requests for DPF and DEF systems
• Emission System Malfunction Lamp flashing

‍

How do technicians resolve SPN 5826?

Remove and Clean the DPF

The DPF must be professionally cleaned using approved methods to remove ash or soot buildup. This ensures that exhaust gases flow freely.

Inspect the DEF System

Check the DEF temperature sensor and DEF pump for functionality. Replace any faulty parts.

Check Fuel Filters

Ensure that the fuel filters are not clogged or dirty, as this can affect the fuel combustion process.

Inspect Wiring and Connections

Examine all wiring and connectors for corrosion or damage. Repair or replace any faulty wiring.

Perform a System Reset

After performing repairs, use diagnostic software to reset the ECM’s emissions system, clearing any stored faults. You may need to perform a road test to confirm the fix.

How can Clue help manage SPN 5826?

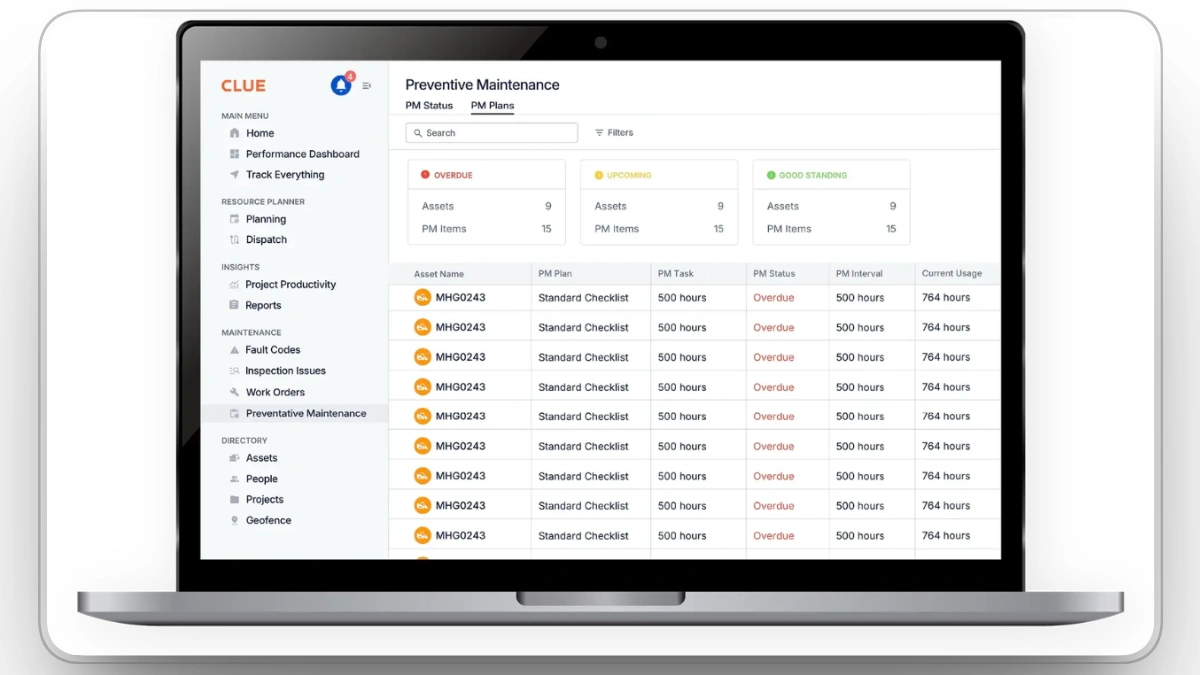

Clue’s Preventive Maintenance and Equipment Maintenance solutions are crucial for addressing SPN 5826.

• Clue’s Preventive Maintenance helps you schedule regular DPF cleanings and DEF system inspections. By monitoring fuel and exhaust system health, you can prevent faults like SPN 5826 from occurring.

‍

• Clue’s Equipment Maintenance tracks sensor data, filter status, and software updates, making it easier to stay ahead of issues that may cause power derates.

‍

Frequently asked questions

1. Does SPN 5826 mean the DPF is bad?

Not necessarily. SPN 5826 means the DPF is likely full of ash, which can be cleaned. Only if the DPF substrate is damaged would it need replacing.

2. How often should the DPF be cleaned?

The DPF should be cleaned based on OEM intervals, typically between 200,000 and 400,000 miles. Factors like idle time and engine oil consumption affect this interval.

3. Can this fault cause the engine to lose power?

Yes, SPN 5826 leads to a power derate, which limits engine performance to prevent further damage and ensure emission compliance.

4. How do I reset the ash load counter?

After cleaning the DPF, use Cummins INSITE or another diagnostic tool to reset the ash load counter.

5. How can Clue help monitor DPF health?

Clue’s Preventive Maintenance feature helps monitor and schedule regular DPF cleanings and inspections, preventing faults like SPN 5826 from occurring and reducing the risk of derates.
